3/8G suction cup support block (ITF G1/G2 auto)
Suction-cup support block, fixed to the interface body: it carries the Ø 40 mm bellows cup and provides vacuum transmission and sealing. 3/8G cup hole. Used on G1 and G2 interfaces ITF 50 125, 50 225, 50 130 and 50 250.

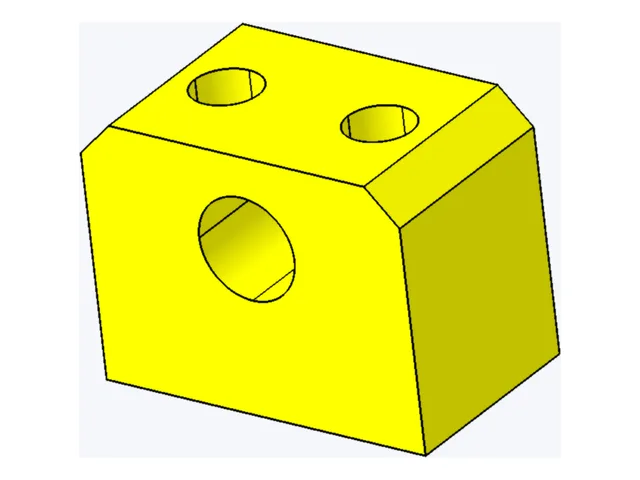

3/8G suction cup support block (ITF G3)
Suction-cup support block, fixed to the interface body: it carries the Ø 40 mm bellows cup and provides vacuum transmission and sealing. 3/8G cup hole. Used on the G3 interface ITF 40 400.

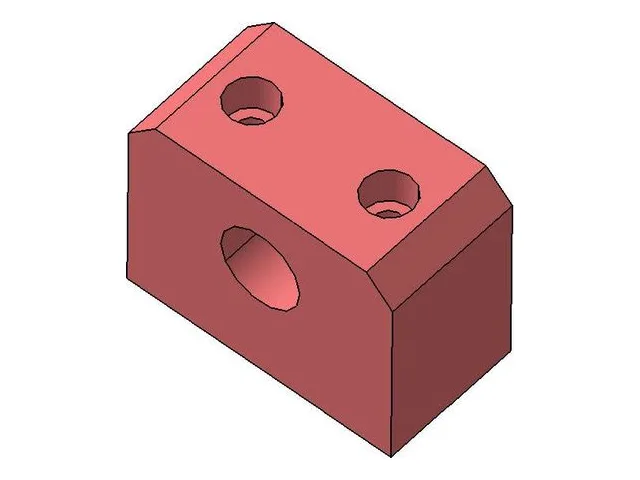

3/8G suction cup support block (ITF G1/G2 manual)
Suction-cup support block, fixed to the interface body: it carries the Ø 40 mm bellows cup and provides vacuum transmission and sealing. 3/8G cup hole. Used on G1 and G2 interfaces ITF 50 600 and 50 500.

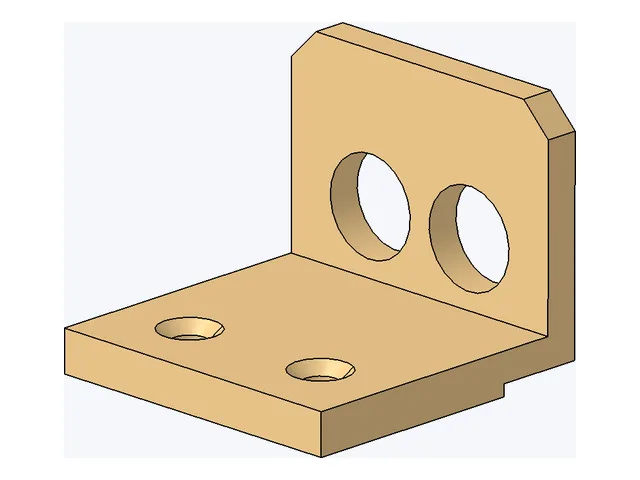

End-fitting support bracket (ITF G1/G2 auto – 1 fitting)
Bracket fixed to the interface body to take one, two or three end fittings ref. ABO 30 006. When the gripper is inserted in the interface, the female fittings on the arm bracket connect to allow suction. For G1 and G2 interfaces ITF 50 125, 50 225, 50 130 and 50 250.

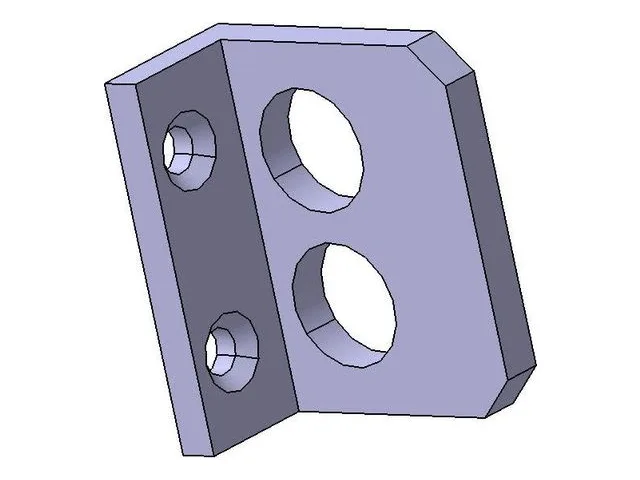

End-fitting support bracket (ITF G1/G2 manual – 2 fittings)
Bracket fixed to the interface body to take one, two or three end fittings ref. ABO 30 006. When the gripper is inserted in the interface, the female fittings on the arm bracket connect to allow suction. Used on G1 and G2 interfaces ITF 50 500 and 50 600.

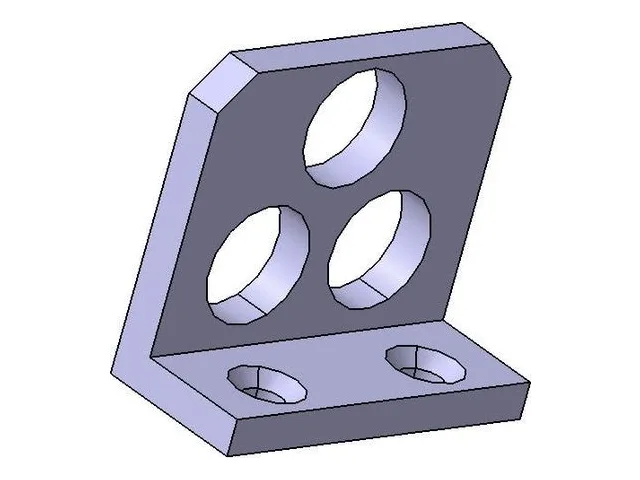

End-fitting support bracket (ITF G1/G2 manual – 3 fittings)
Bracket fixed to the interface body to take one, two or three end fittings ref. ABO 30 006, with capacity for 3 fittings. Used on G1 and G2 interfaces ITF 50 500 and 50 600.
90° bracket for G1/G2/Ø75 interfaces
This part mounts our interfaces at 90° to a robot's head axis. It fits any robot whose flange complies with ISO 9409-I-A125. For G1, G2 or Ø 75 interfaces; M8 centres 84 × 84.
90° bracket for G3 interface
This part mounts our interfaces at 90° to a robot's head axis. It fits any robot whose flange complies with ISO 9409-I-A125. For the G3 interface; M8 centres 67 × 67.

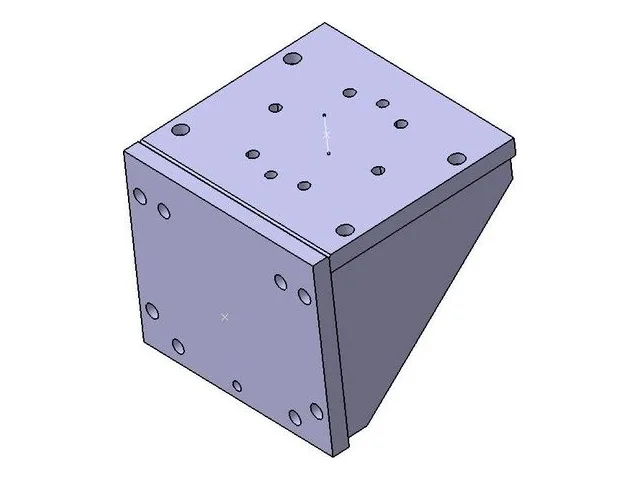

90° bracket for aluminium T-beam
This part mounts our interfaces at 90° to a robot's head axis. It fits any robot whose flange complies with ISO 9409-I-A125. For the aluminium T-beam; Ø 14 centres 142 × 142.
