Accessories

M42 detection probe support

Support designed to hold a detection probe (Rolland, Klaschka type…). The assembly detects double blanks during destacking. The probe is not included in the reference.

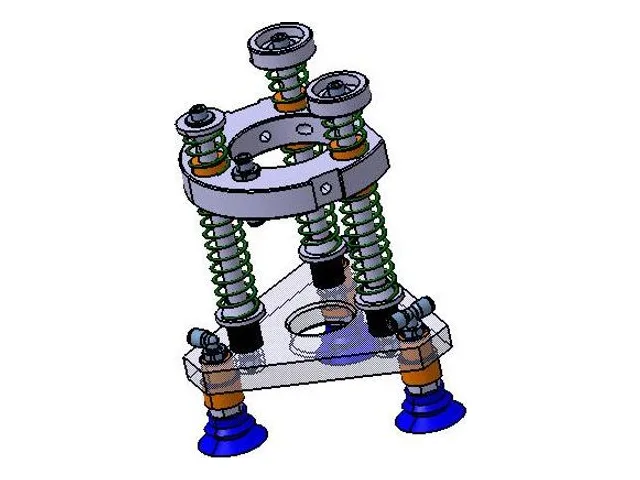

M54 detection probe support

Support designed to hold a detection probe (Rolland, Klaschka type…). The assembly detects double blanks during destacking. The probe is not included in the reference.

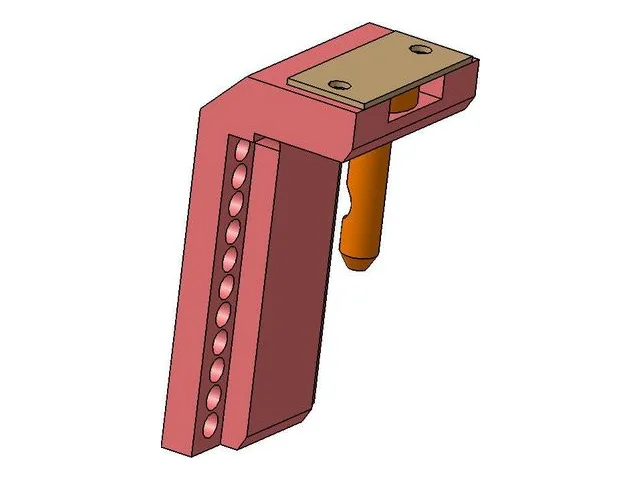

Quick-release bracket – destacker side

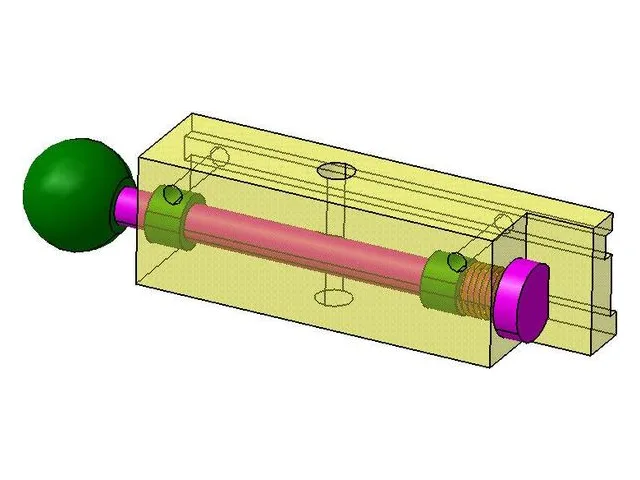

Quick-release bracket – probe support side

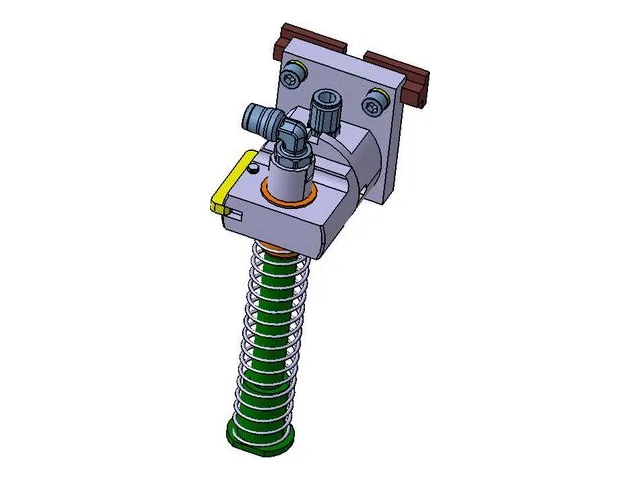

Tilting suction cup – 75 mm stroke

PA SVB systems are designed specifically for destacking grippers and fit all our slotted aluminium profiles. Suction only occurs with the cup vertical; turned horizontal the cup loses contact, the air circuit closes and suction is cut automatically.

Tilting suction cup – 100 mm stroke

PA SVB systems are designed specifically for destacking grippers and fit all our slotted aluminium profiles. Suction only occurs with the cup vertical; turned horizontal the cup loses contact, the air circuit closes and suction is cut automatically.

Retractable system H30 – 75 mm stroke

This retractable system holds the cup out of the way, avoiding contact with the working area. Mainly used on universal destackers, it lets you select which cups are in use. The air circuit is shut off manually by a valve, not included in the reference.

Retractable system H30 – 100 mm stroke

This retractable system holds the cup out of the way, avoiding contact with the working area. Mainly used on universal destackers, it lets you select which cups are in use. The air circuit is shut off manually by a valve, not included in the reference.

Retractable system H50 – 75 mm stroke

This retractable system holds the cup out of the way, avoiding contact with the working area. Mainly used on universal destackers, it lets you select which cups are in use. The air circuit is shut off manually by a valve, not included in the reference.

Retractable system H50 – 100 mm stroke

This retractable system holds the cup out of the way, avoiding contact with the working area. Mainly used on universal destackers, it lets you select which cups are in use. The air circuit is shut off manually by a valve, not included in the reference.
