Square-Profile Grippers

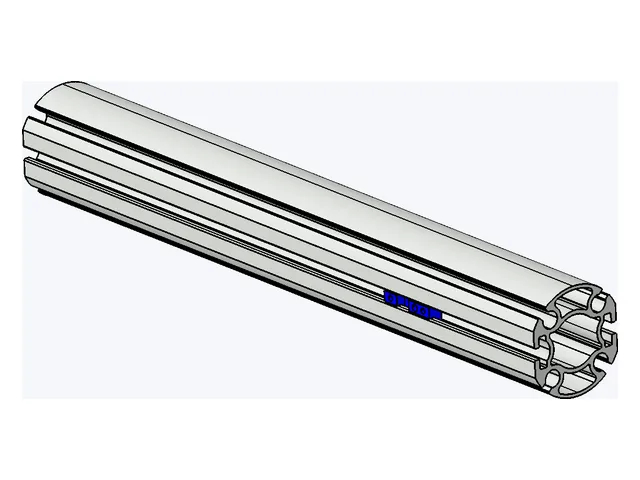

Ø75, 50×50 and 40×40 profiles forming the central arm that joins the interface

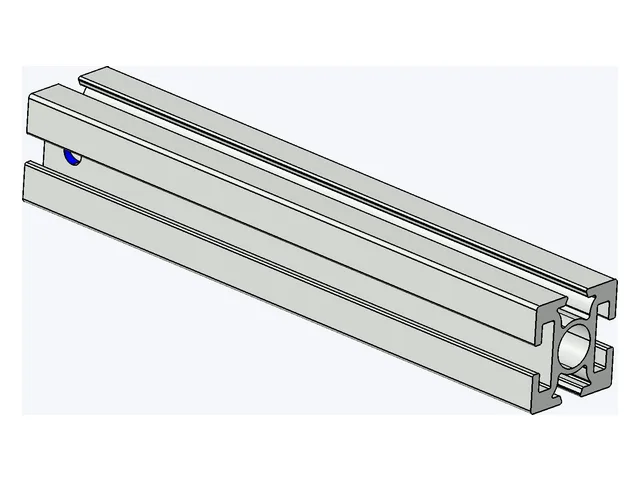

Aluminium-profile antennas in 30×30 and 40×40, base or reinforced

Antennas supplied with their brackets fitted, for 50×50 or Ø75 profiles

Antennas supplied with their brackets fitted, for 40×40 profiles

Antennas supplied with their brackets fitted, for 30×30 profiles

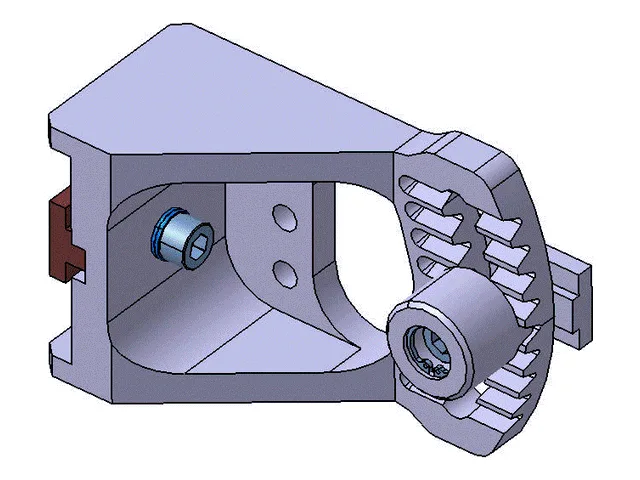

Notched and tapped brackets making up the 50-series pre-assembled antennas

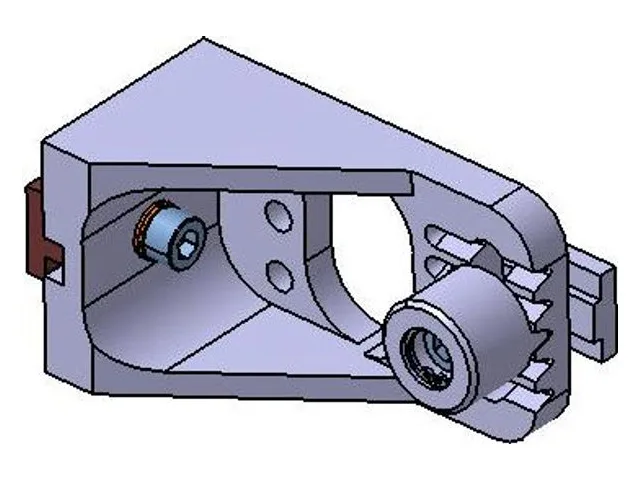

Notched and tapped brackets making up the 40- and 30-series pre-assembled antennas

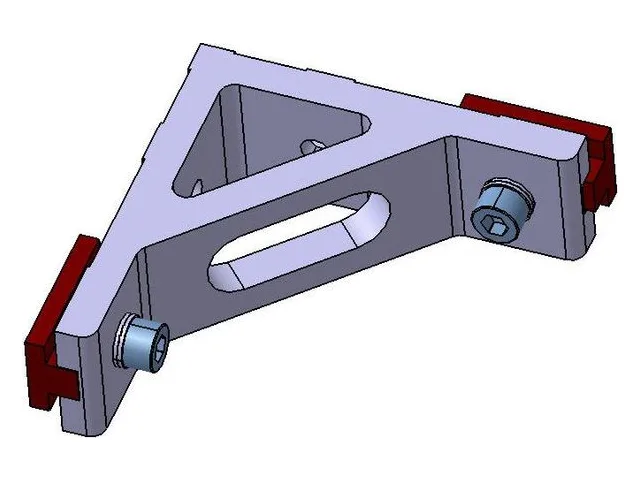

Brackets used with T-slot nuts to fix onto Ø75, 50×50 and 40×40 profiles

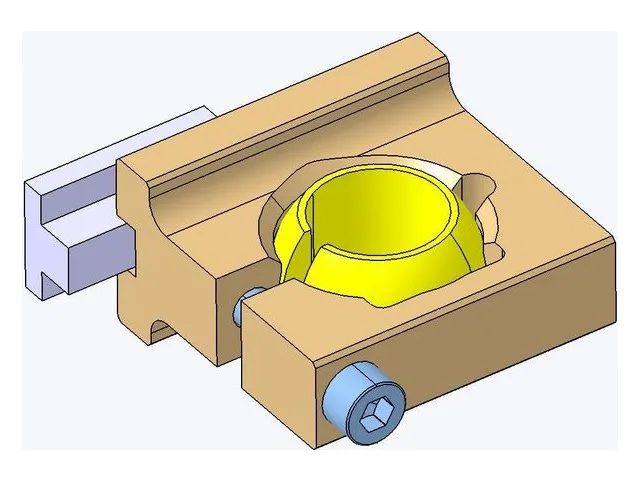

Support with a split ball socket taking a TUB 13 tube, supplied with screw and T-slot nut

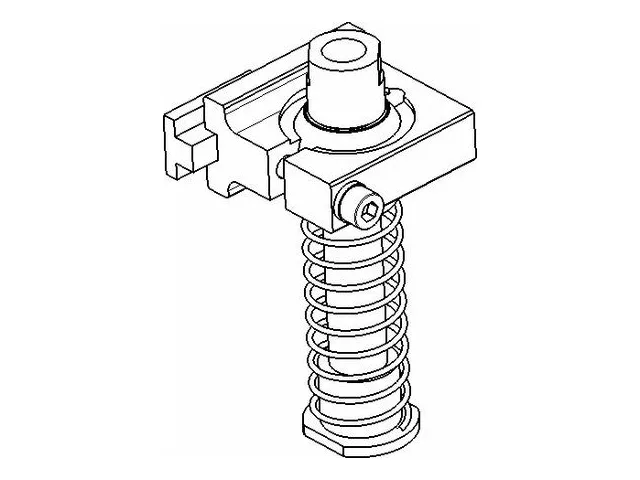

Ball-joint support with a sliding spring plunger, tapped G3/8 for the cup and G1/4 for the fitting

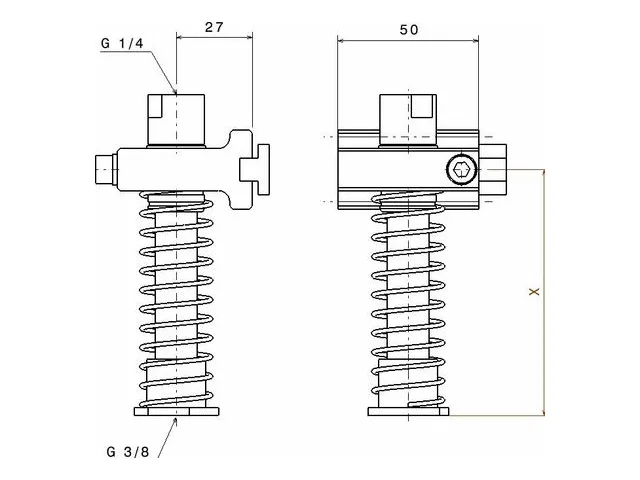

Support with a sliding spring plunger, tapped G3/8 for the cup and G1/4 for the fitting

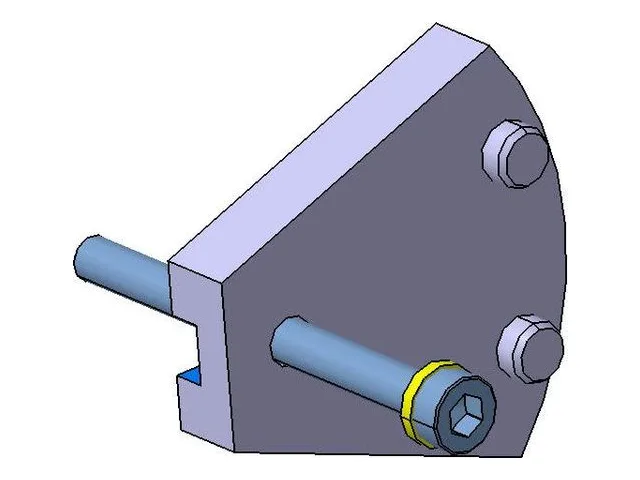

Wedge fitted between antenna and ball-joint support to increase the gripping angle

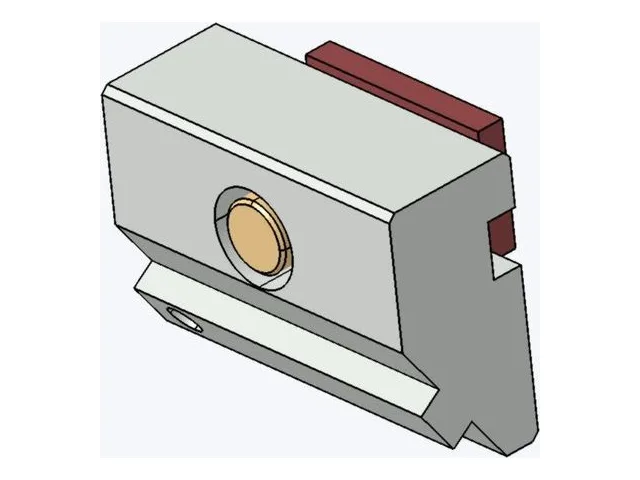

Wedge that increases the gripping angle already provided by a ball-joint support

Steel nut that slides into every 8 mm slot of the arms and antennas

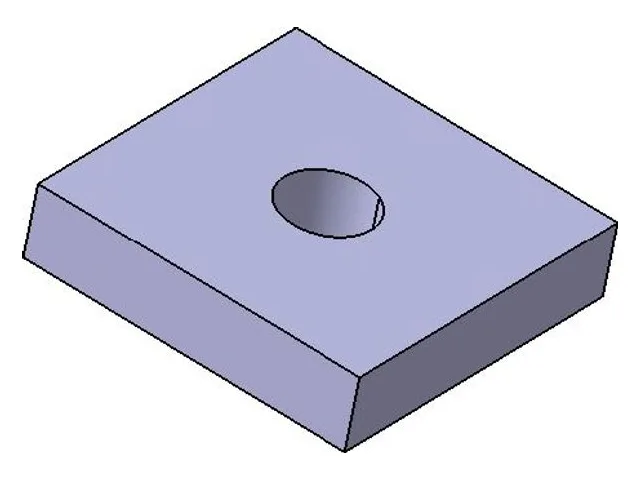

Steel plates that slide into the profile slots, for one or two M6 screws

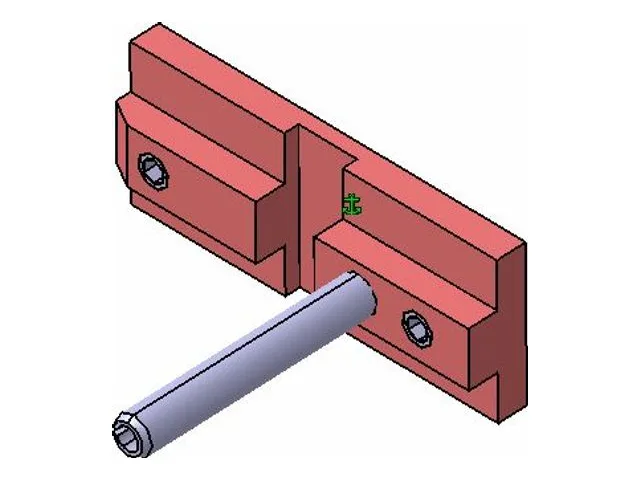

Houses the indexing pin when the central arm enters an interface

Fixes a 30×30 base or 40×40 profile onto a 40×40, 50×50 or Ø75 profile

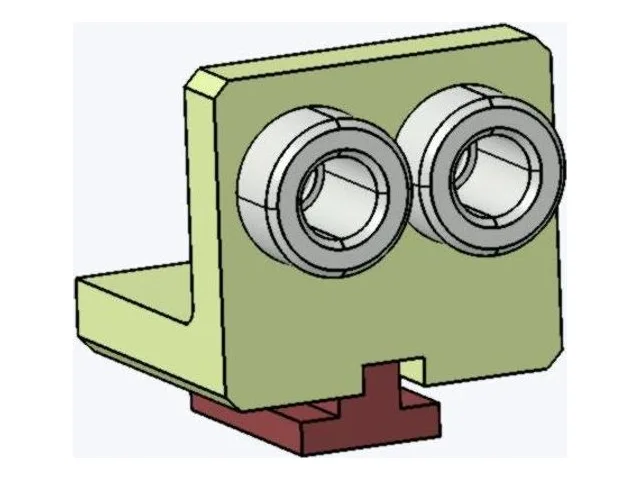

Pneumatic junction between the gripper's suction cups and the upstream vacuum system
