Spring ball-joint support
Square-Profile Grippers
Spring ball-joint support – 52 mm stroke (X = 86 mm)
These ball-joint supports carry a socket in which a spring plunger slides. The plunger is tapped to take a suction cup (G 3/8) on one side and a pneumatic fitting (G 1/4) on the other. An anti-rotation version exists for specific applications: please consult us.

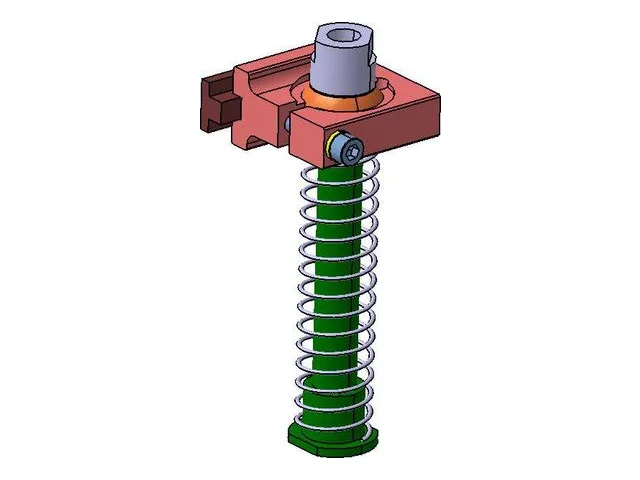

Spring ball-joint support – 75 mm stroke (X = 118 mm)
These ball-joint supports carry a socket in which a spring plunger slides. The plunger is tapped to take a suction cup (G 3/8) on one side and a pneumatic fitting (G 1/4) on the other. An anti-rotation version exists for specific applications: please consult us.
Spring ball-joint support – 100 mm stroke (X = 154 mm)
These ball-joint supports carry a socket in which a spring plunger slides. The plunger is tapped to take a suction cup (G 3/8) on one side and a pneumatic fitting (G 1/4) on the other. An anti-rotation version exists for specific applications: please consult us.
