Flat oblong, male 3/8G

Vacuum Cups

4 / 4 product(s)
CVL002/6

Male 3/8G flat oblong suction cup 25×65

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force70 N
Dim. Rest25×65
Dim. Grip26.8×67
Height12.5 mm
Weight17 g
CVL003/8

Male 3/8G flat oblong suction cup 30×80

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force110 N
Dim. Rest30×80
Dim. Grip31.5×82
Height13 mm
Weight22 g
CVL004/8

Male 3/8G flat oblong suction cup 40×80

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force140 N
Dim. Rest40×80
Dim. Grip42×82
Height15 mm
Weight23 g
CVL005/1

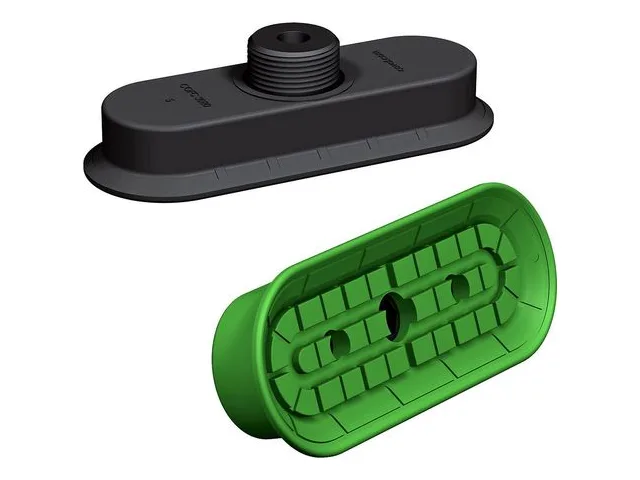

Male 3/8G flat oblong suction cup 50×100

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force230 N
Dim. Rest50×100
Dim. Grip52.5×102.5
Height16 mm
Weight36 g

F = Lifting force measured at 65% on dry, smooth and flat sheet metal, without safety factor. f = vacuum cup deflection.
