Vacuum Cups

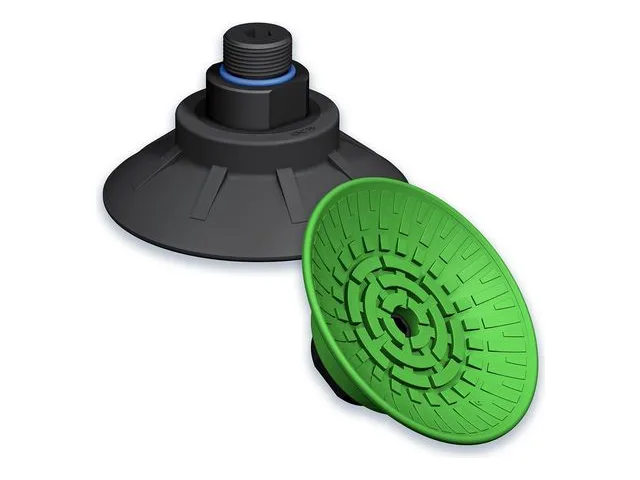

Flat cups Ø35 to Ø125 mm, 50 to 550 N lifting force, male 3/8G thread — for dry, smooth, flat sheet metal.

Flat cups Ø35 to Ø125 mm, 50 to 550 N lifting force, female 3/8G thread for mounting on a threaded stem.

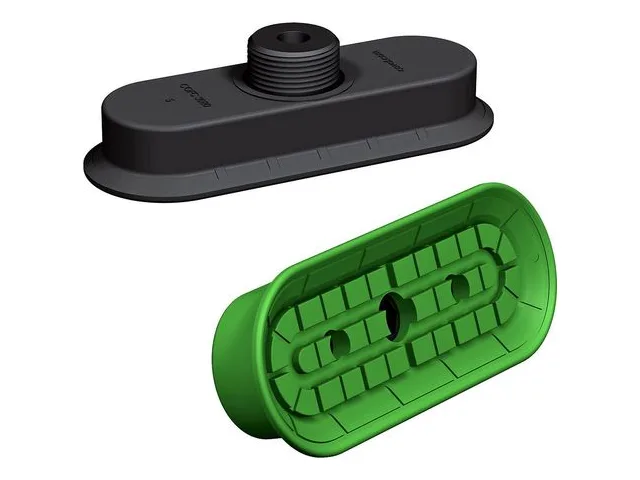

Flat oblong cups 25×65 to 50×100 mm, 70 to 230 N, male 3/8G thread — elongated parts and tight footprints.

Flat oblong cups 25×65 to 50×100 mm, 70 to 230 N, female 3/8G thread.

1.5-bellows cups Ø30 to Ø115 mm, 40 to 420 N, male 3/8G thread — slightly curved sheet or varying heights.

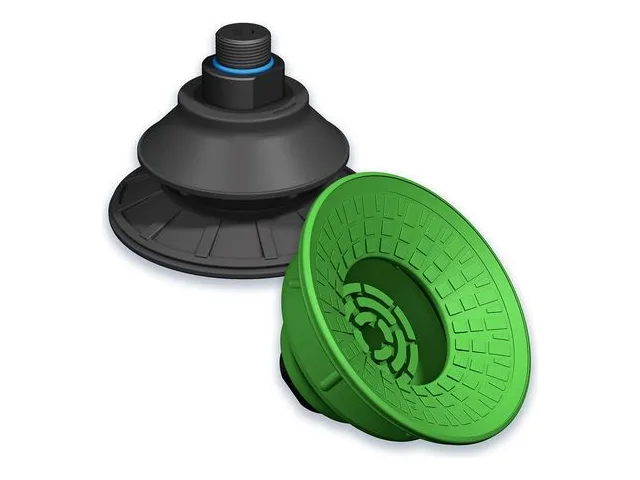

1.5-bellows cups Ø30 to Ø115 mm, 40 to 420 N, female 3/8G thread.

1.5-bellows oblong cups 31×65 to 70×140 mm, 70 to 230 N, male 3/8G thread.

1.5-bellows oblong cups 31×65 to 70×140 mm, 60 to 300 N, female 3/8G thread.

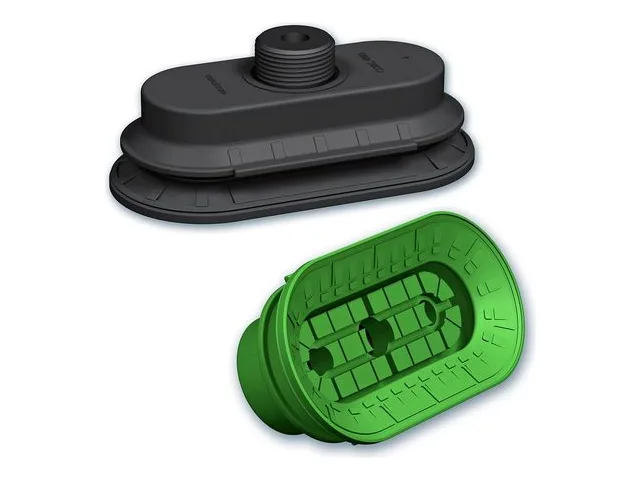

1.5-bellows oblong cups 31×65 to 70×140 mm, 60 to 300 N, square insert for anti-rotation mounting.

Magnetic cups Ø30 to Ø70 mm, 35 to 290 N at −0.6 bar — for perforated, cut-out or laser-cut sheet.
