1.5 bellows oblong, male 3/8G

Vacuum Cups

4 / 4 product(s)
CVL103/6

Male 3/8G 1½ bellows oblong suction cup 31×65

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force70 N
Dim. Rest31×65
Dim. Grip32.3×67
Height20 mm
Weight25 g
CVL104/8

Male 3/8G 1½ bellows oblong suction cup 40×80

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force110 N
Dim. Rest40×80
Dim. Grip41.5×82
Height22 mm
Weight31 g
CVL105/1

Male 3/8G 1½ bellows oblong suction cup 55×110

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force140 N
Dim. Rest55×110
Dim. Grip57×112.5
Height29 mm
Weight62 g

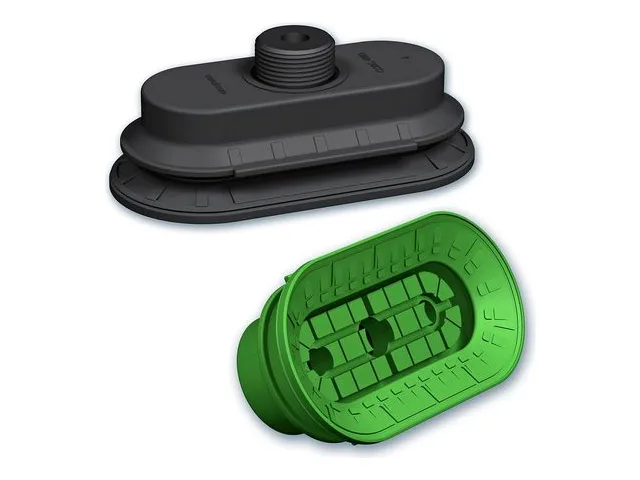

CVL107/1

Male 3/8G 1½ bellows oblong suction cup 70×140

Cup in NBR nitrile 55 Shore A (excellent resistance to oils), PA polyamide 6.6 insert for reduced weight, NBR nitrile O-ring. Lifting force measured at 65% on dry, smooth, flat sheet, with no safety factor.

Force230 N
Dim. Rest70×140
Dim. Grip72×143
Height30 mm
Weight97 g

F = Lifting force measured at 65% on dry, smooth and flat sheet metal, without safety factor. f = vacuum cup deflection.
